CBCT and 3D Planning for Dental Implants in the UK

CBCT is the scan many implant clinicians use when a normal dental X-ray does not give enough information for safe planning. Instead of a flat image, it creates a three-dimensional view of the jaw, tooth roots, sinuses, nerve canals and available bone. That matters because implant treatment is not only about whether a gap can be filled; it is about whether an implant can be placed in the right position for the final tooth.

For a patient, the scan is usually quick and non-invasive. You stand or sit still while the scanner rotates around your head. The value comes afterwards, when the clinician uses the scan to decide whether an implant is suitable, whether grafting is needed, and whether the planned crown or bridge will emerge from the gum in a cleanable, natural-looking position. This is usually one of the earliest planning steps in the dental implant process and timeline.

What a CBCT Scan Shows

A standard dental X-ray is useful, but it compresses three-dimensional anatomy into a two-dimensional image. CBCT lets the clinician see bone width, bone height and nearby structures from multiple angles. In implant planning, those details can change the whole treatment route.

This is especially important because implants are planned for a future tooth, not simply for a hole in the bone. If the implant is placed too far towards the tongue, cheek, sinus or nerve, the final crown may be harder to restore, harder to clean or riskier to maintain. Three-dimensional planning helps connect the surgical position to the restorative result.

• Bone height below the sinus in the upper jaw.
• The position of the inferior alveolar nerve in the lower jaw.
• The width of the ridge where the implant would sit.
• The angle needed for the implant to support the final crown or bridge.
• Hidden infection, retained root fragments or anatomy that changes the plan.

When CBCT Is Usually Worth Doing

CBCT is most useful where the anatomy is tight or the final restoration needs careful angulation. That includes upper back teeth close to the sinus, lower teeth close to the nerve canal, narrow ridges, full-arch treatment, aesthetic-zone cases and situations where previous treatment has changed the bone.

It is also useful when the clinician is deciding whether bone grafting or a sinus lift is likely. A flat X-ray may suggest there is enough height, but it cannot reliably show whether the ridge is wide enough. That is why some quotes change after imaging: the scan reveals the real shape of the bone.

CBCT can also prevent the wrong treatment from being started. A patient may arrive expecting a simple implant where the scan shows an infection, a thin ridge, a sinus problem or a nerve position that makes the original plan unsuitable. That can be frustrating, but it is better to discover the limitation during planning than during surgery.

Radiation, Justification and Field of View

CBCT uses ionising radiation, so it should be justified rather than treated as a routine extra. UK guidance on the safe use of dental CBCT is built around the same practical principle patients would expect: use the scan when it changes diagnosis or treatment planning, and keep the field of view as small as reasonably suitable for the case.

The dose varies by scanner, setting, field of view and image resolution. A small scan for one implant area is not the same as a full-jaw scan, and UK dental radiography selection criteria show how CBCT dose ranges vary by field of view. A responsible clinician should be able to explain why the scan is needed, what area is being captured, and how the result will affect the treatment plan.

Patients do not need to memorise radiation numbers, but they should expect a clear justification. “We take one for everyone” is not as useful as “we need to confirm the nerve position before placing an implant here.” The second explanation connects the scan to a decision. That is the standard worth listening for.

It is also reasonable to ask whether an existing scan can be used. If the image is recent, covers the right area and has enough resolution, it may avoid repeating exposure. If it is old, cropped, blurred or taken before extractions changed the anatomy, a new scan may still be justified.

Freehand Placement, Digital Planning and Surgical Guides

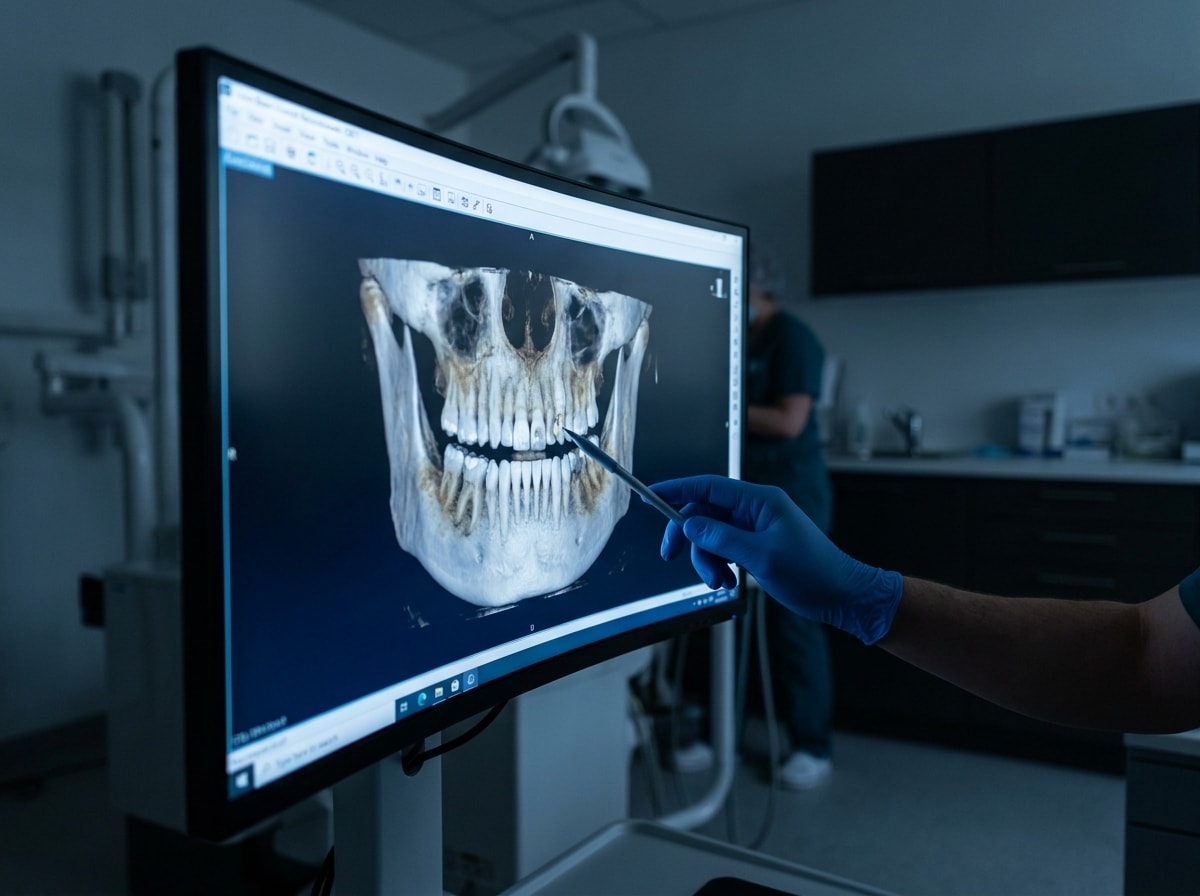

After the scan, the clinician can place a virtual implant in planning software and assess the angle against the proposed tooth. Some cases are then placed freehand using the plan as a reference. Others use a surgical guide, which is a custom-made template that helps control the drill position and angle during surgery.

A guide is not automatically better for every case. It is most helpful when precision is especially important: limited bone width, multiple implants, full-arch planning, a tight nerve or sinus position, or a front-tooth case where the emergence profile matters. For a straightforward single implant with generous bone, an experienced clinician may reasonably choose freehand placement.

A surgical guide also has limitations. It depends on accurate scan data, accurate digital design and a guide that seats properly in the mouth. If the guide is unstable, the mouth opening is limited, or the bone quality is different from expected, the clinician still needs judgement during surgery. The guide supports the plan; it does not replace clinical decision-making.

Patients should therefore listen for the explanation rather than the label. “Guided surgery” can be useful, but it should be tied to a reason: protecting a nerve, avoiding the sinus, matching a full-arch bridge design, or controlling a difficult front-tooth angle. If there is no reason, it may simply be an optional planning preference.

What It Costs and What to Ask

When itemised separately, a CBCT scan for implant planning is commonly around £180 to £300. Some practices include it in a consultation or planning fee. Surgical guide manufacture, where needed, often adds around £200 to £500 because it involves digital planning, design and laboratory production.

Ask whether the fee includes interpretation of the whole scan volume or only the proposed implant site. CBCT images can show areas outside the immediate gap, and the clinician has a responsibility to manage findings appropriately. If the scan was taken elsewhere, the receiving clinician may still need to review whether the field of view, resolution and date are suitable for the decision being made.

• Is the CBCT included in the consultation fee or charged separately?
• Is the scan small-field or full-jaw, and why is that field needed?
• Will the scan be reviewed by the implant clinician before quoting final treatment?
• Does the plan require a surgical guide, or is freehand placement appropriate?
• If grafting is recommended, what exactly did the scan show?

The most useful scan is one that changes the plan in a clear way. If a clinician recommends CBCT, ask what decision it is answering. If they recommend treatment without three-dimensional imaging for a complex case, ask how they have assessed bone width, nerve position and restorative angle.

For patients comparing clinics, CBCT is one sign of the planning culture rather than a guarantee of quality on its own. The scan needs to be interpreted, explained and translated into a sensible treatment plan. A high-tech scan with a vague treatment explanation is still a weak consultation.
